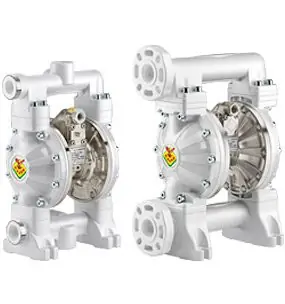

DIAPHRAGM PUMPS – IN POLYPROPYLENE AND ALUMINUM

Call For Pricing

The pneumatic diaphragm pumps are designed with a 1:1 compression ratio and made to pump a vast range of fluids, with high viscosity and with solid parts in suspension. Polypropylene parts come into contact with the fluid while aluminium motors are used.

Categories: , Brand:

Description

s. 120-PPAB multiple inlet/oulet 1/2″ – flow rate 60 l/min

s. 120-PPAB double inlet/multiple oulet 1/2″ – flow rate 60 l/min

s. 1000-PPAB 1″ – flow rate 170 l/min

s. 1000-PPAB double inlet 1″ – flow rate 170 l/min

diaphragm pumps for drums

1/2″ – 1:1 ratio – flow rate 60 l/min – s. 120-PB

1/2″ – 1:1 ratio – flow rate 60 l/min – s. 120-PB double inlet


Art.
Flow rate
Ratio
Max pressure
Max cicles for minute
Delivery for cicles
Max suction lift
Max size pumpable solids
Max working temperature
Noise level
Max air consumption
Air working pressure
Air inlet connection
Air outlet connection (muffler)
Fluid inlet connection
Fluid outlet connection
Balls for inlet
Membranes
Balls
Seats
Packing
Gross weight
2B3/16117EA5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,50 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
G 3/4″ (f) (G 1″ (f) for drum)
G 1/2″ (f)
cylindrical ball valve
EPDM
acetal
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,8 kg
2B3/16117HH5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,50 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
G 3/4″ (f) (G 1″ (f) for drum)
G 1/2″ (f)
cylindrical ball valve
Hytrel®
Hytrel®
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,8 kg
2B3/16117NH5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,50 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
G 3/4″ (f) (G 1″ (f) for drum)
G 1/2″ (f)
cylindrical ball valve
NBR
Hytrel®
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,8 kg
2B3/16117SS5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,50 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
G 3/4″ (f) (G 1″ (f) for drum)
G 1/2″ (f)
cylindrical ball valve
Santoprene™
Santoprene™
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,8 kg
2B3/16117TT5
50 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,50 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
G 3/4″ (f) (G 1″ (f) for drum)
G 1/2″ (f)
cylindrical ball valve
PTFE+Hytrel®
PTFE
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,8 kg
Art.
Flow rate
Ratio
Max pressure
Max cicles for minute
Delivery for cicles
Max suction lift
Max size pumpable solids
Max working temperature
Noise level
Max air consumption
Air working pressure
Air inlet connection
Air outlet connection (muffler)
Fluid inlet connection
Fluid outlet connection
Balls for inlet
Membranes
Balls
Seats
Packing
Gross weight
2B8/16117EA5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,5 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet G 3/4″ (f)
G 1/2″ (f)
cylindrical ball valve
EPDM
acetal
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,7 kg
2B8/16117HH5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,5 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet G 3/4″ (f)
G 1/2″ (f)
cylindrical ball valve
Hytrel®
Hytrel®
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,7 kg
2B8/16117NH5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,5 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet G 3/4″ (f)
G 1/2″ (f)
cylindrical ball valve
NBR
Hytrel®
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,7 kg
2B8/16117SS5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,5 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet G 3/4″ (f)
G 1/2″ (f)
cylindrical ball valve
Santoprene™
Santoprene™
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,7 kg
2B8/16117TT5
60 l/min
1:1
8 bar
330 cpm
0,188 l
dry column 4,5 m – wet column 7,5 m
1,5 mm
65 °C
75 dB
0,5 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet G 3/4″ (f)
G 1/2″ (f)
cylindrical ball valve
PTFE+Hytrel®
PTFE
polypropylene and AISI 316 stainless steel
No. 1 – 24x19x40 cm
5,7 kg
Art.
Flow rate
Ratio
Max pressure
Max cicles for minute
Delivery for cicles
Max suction lift
Max size pumpable solids
Max working temperature
Noise level
Max air consumption
Air working pressure
Air inlet connection
Air outlet connection (muffler)
Fluid inlet connection
Fluid outlet connection
Balls for inlet
Membranes
Balls
Seats
Packing
Gross weight
2B4/26117EAI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,60 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
EPDM
acetal
AISI 316 stainless steel
No. 1 – 34x23x49 cm
7 kg
2B4/26117HHI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,6 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
Hytrel®
Hytrel®
AISI 316 stainless steel
No. 1 – 34x23x49 cm
7 kg
2B4/26117NHI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,60 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
NBR
Hytrel®
AISI 316 stainless steel
No. 1 – 34x23x49 cm
7 kg
2B4/26117SSI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,60 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
Santoprene™
Santoprene™
AISI 316 stainless steel
No. 1 – 34x23x49 cm
7 kg
2B4/26117TTI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,6 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
PTFE+Hytrel®
PTFE
AISI 316 stainless steel
No. 1 – 34x23x49 cm
7 kg
Art.
Flow rate
Ratio
Max pressure
Max cicles for minute
Delivery for cicles
Max suction lift
Max size pumpable solids
Max working temperature
Noise level
Max air consumption
Air working pressure
Air inlet connection
Air outlet connection (muffler)
Fluid inlet connection
Fluid outlet connection
Balls for inlet
Membranes
Balls
Seats
Packing
Gross weight
2B7/26117EAI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,6 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
EPDM
acetal
AISI 316 stainless steel
No. 1 – 39x23x45 cm
12,1 kg
2B7/26117HHI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,6 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
Hytrel®
Hytrel®
AISI 316 stainless steel
No. 1 – 39x23x45 cm
12,1 kg
2B7/26117NHI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,6 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
NBR
Hytrel®
AISI 316 stainless steel
No. 1 – 39x23x45 cm
12,1 kg
2B7/26117SSI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,6 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
Santoprene™
Santoprene™
AISI 316 stainless steel
No. 1 – 39x23x45 cm
12,1 kg
2B7/26117TTI
170 l/min
1:1
8 bar
300 cpm
0,590 l
dry column 5 m – wet column 7,5 m
3 mm
65 °C
75 dB
1,6 m3/min
2 ÷ 6 bar
G 3/8″ (f)
G 1/2″ (f)
dual inlet ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ANSI 150 – DIN PN 10 – JIS 10K 1″ (25 mm) proneness to G 1.1/4″ (f) thread
ball valve
PTFE+Hytrel®
PTFE
AISI 316 stainless steel
No. 1 – 39x23x45 cm
12,1 kg
Art.
Flow rate
Ratio
Compatible fluids
Internal flanges and motor engine material
Wetted parts
Ball valve material
Air inlet connection
Fluid inlet-outlet connection
Working pressure
Max supply pressure
Average air consumption
Noise level
Fluid temperature
Max size pumpable solids mm
Suction-delivery ball valve with spring
Bung adaptor
Suction tube
Packing
Weight
33514
50 l/min
1:1
antifreeze and windshield washing liquid
aluminum
polypropylene
Teflon®
G 3/8″ (f)
G 3/4″ (f) x G 1/2″ (f)
2 ÷ 6 bar
8 bar
400 l/min
75 dB
-10 ÷ +65 °C
ø 1,5 mm
cylindrical ball valve with spring
p/n 33434
940 mm – ø 34
No. 2 – 24x19x40 – 12x12x111 cm
12,5 kg
33516
50 l/min
1:1
antifreeze and windshield washing liquid
aluminum
polypropylene
Teflon®
G 3/8″ (f)
G 3/4″ (f) x G 1/2″ (f)
2 ÷ 6 bar
8 bar
400 l/min
75 dB
-10 ÷ +65 °C
ø 1,5 mm
cylindrical ball valve with spring
p/n 33434
1240 mm – ø 34
No. 2 – 24x19x40 – 12x12x135 cm
12,5 kg
Art.
Flow rate
Ratio
Compatible fluids
Motor and inside flanges material
Wetted parts
Ball valve material
Air inlet connection
Fluid inlet-outlet connection
Air working pressure
Max supply pressure
Average air consumption
Noise level
Fluid temperature
Max solids diameter
Suction-delivery ball valve with spring
Packing
Weight
2B3/16117NH52
60 l/min
1:1
water, mineral-vegetable oils, diesel fuel
aluminum
polypropylene
Hytrel®
G 3/8″ (f)
G 3/4″ (f) x G 1/2″ (f)
2 ÷ 6 bar
8 bar
400 l/min
75 dB
-10 ÷ +65 °C
ø 1,5 mm
cylindrical ball valve with spring
No. 1 – 24x19x40 cm
7,5 kg
2B3/16117TT52
50 l/min
1:1
antifreeze and windshield washing liquid
aluminum
polypropylene
Teflon®
G 3/8″ (f)
G 3/4″ (f) x G 1/2″ (f)
2 ÷ 6 bar
8 bar
400 l/min
75 dB
-10 ÷ +65 °C
ø 1,5 mm
cylindrical ball valve with spring
No. 1 – 24x19x40 cm
7,5 kg
Art.
Flow rate
Ratio
Compatible fluids
Motor and inside flanges material
Wetted parts
Ball valve material
Air inlet connection
Fluid inlet-outlet connection
Air working pressure
Max supply pressure
Average air consumption
Noise level
Fluid temperature
Max solids diameter
Suction-delivery ball valve with spring
Packing
Weight
2B8/16117NH52
60 l/min
1:1
water, mineral-vegetable oils, diesel fuel
aluminum
polypropylene
Hytrel®
G 3/8″ (f)
dual inlet/multi-ported outlet G 3/4″ (f) x G 1/2″ (f)
2 ÷ 6 bar
8 bar
400 l/min
75 dB
-10 ÷ +65 °C
ø 1,5 mm
cylindrical ball valve with spring
No. 1 – 24x19x40 cm
7 kg
2B8/16117TT52
60 l/min
1:1
antifreeze and windshield washing liquid
aluminum
polypropylene
Teflon®
G 3/8″ (f)
dual inlet/multi-ported outlet G 3/4″ (f) x G 1/2″ (f)
2 ÷ 6 bar
8 bar
400 l/min
75 dB
-10 ÷ +65 °C
ø 1,5 mm
cylindrical ball valve with spring
No. 1 – 24x19x40 cm
7 kg

Reviews

There are no reviews yet.

Be the first to review “DIAPHRAGM PUMPS – IN POLYPROPYLENE AND ALUMINUM”

Your email address will not be published. Required fields are marked *

Related products
