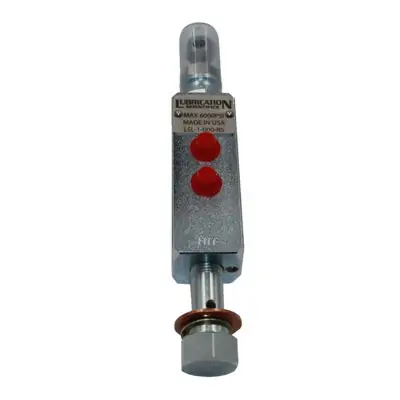

LSG044 – LSL-1 R5 Servicing| LSL-1R5 Technical Specifications | |||||
|---|---|---|---|---|---|
| XXX = Material|000=CRS, 303=SS303, 316=SS316 | |||||
| Description | Supply Connection | Output Connection | Part Number | ||
| Single stand alone injector | 3/8 NPTF Male | 1/8 NPSF Female | LSL-1-XXX-R5 | ||
| Manifold replacement injector | Manifold | LSL-1A-XXX-R5 | |||
| LSL-1R5 Manifold Assembly Technical Specifications | |||||
| Injectors in Assembly | Supply Connection | Output Connection | MTG Hol C/L Distance | Manifold Part Number | Assembly Part Number |
| 1 | Manifold – 3/8 NPTF | 1/8 NPSF Female | 1 MTG hole only | LSL-M1-XXX-R5 | LSL-M1A-XXX-R5 |
| 2 | LSL-M2-XXX-R5 | LSL-M2A-XXX-R5 | |||
| 3 | 1.25″/3.175CM | LSL-M3-XXX-R5 | LSL-M3A-XXX-R5 | ||
| 4 | 2.50″/6.35CM | LSL-M4-XXX-R5 | LSL-M4A-XXX-R5 | ||
| 5 | 3.75″/9.525CM | LSL-M5-XXX-R5 | LSL-M5A-XXX-R5 | ||
| 6 | 5.00″/12.7CM | LSL-M6-XXX-R5 | LSL-M6A-XXX-R5 | ||
