Overview

Our M-Series Spin-On Filter Elements are an important line of defense in maintaining fluid quality. These filter elements have a wide range of chemical compatibility, which allows them to be used in most of your industrial applications. They are available in multiple micron and water removal sizes to accommodate your needs.

Standard Features

Max. Working Pressure: 174 PSI Thread Size: 1-1/2” – 16UN Operating Temperature: -25ºF to 230ºF Compatibility:Compatible with all of the M Series filtration products.

Filter Elements

Part Number	BETA Rating	Desired Cleanliness Level (ISO Code)
P1068	ß3(c)=1000	14/12/9 – 13/11/8
P1069	ß6(c)=1000	17/15/12 – 14/12/9
P1070	ß10(c)=1000	18/16/13 – 17/15/12
P1071	ß25(c)=1000	21/19/16 – 20/18/15

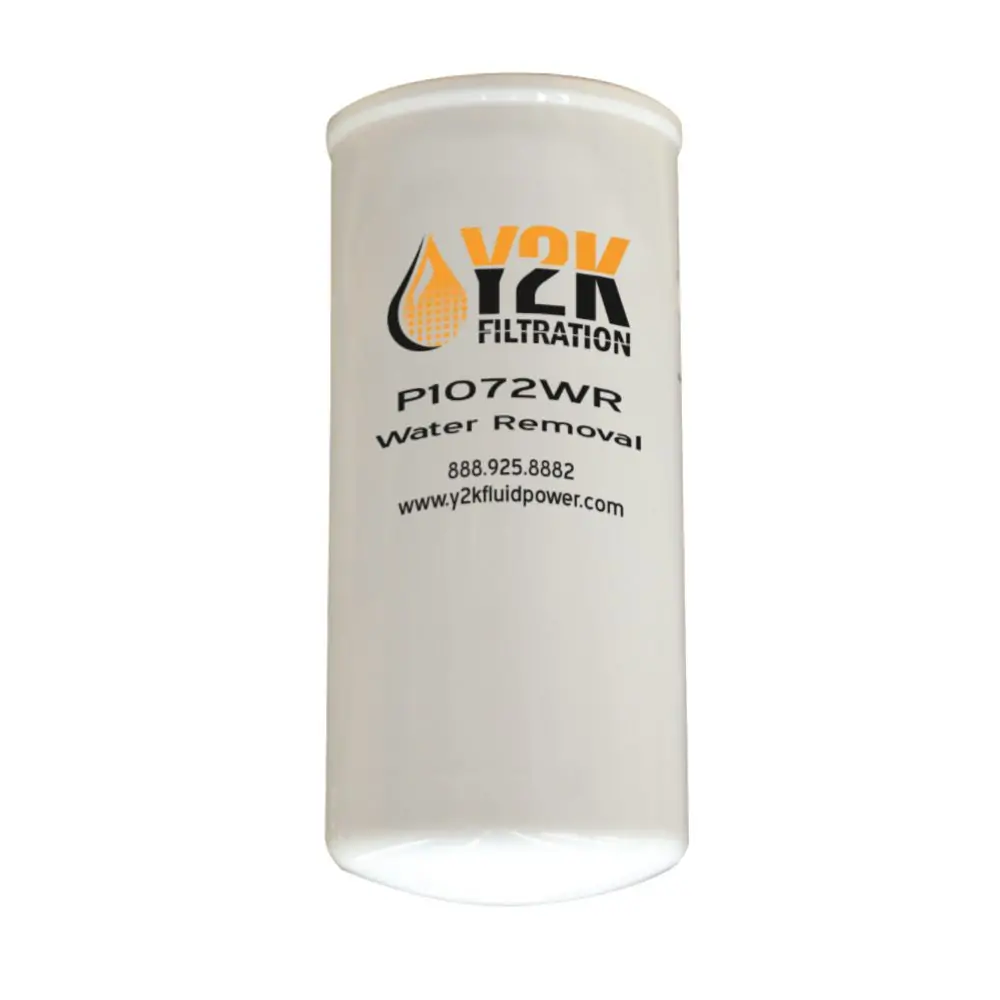

P1072WR	Water Removal

All M Series elements measure 5” x 10”.
