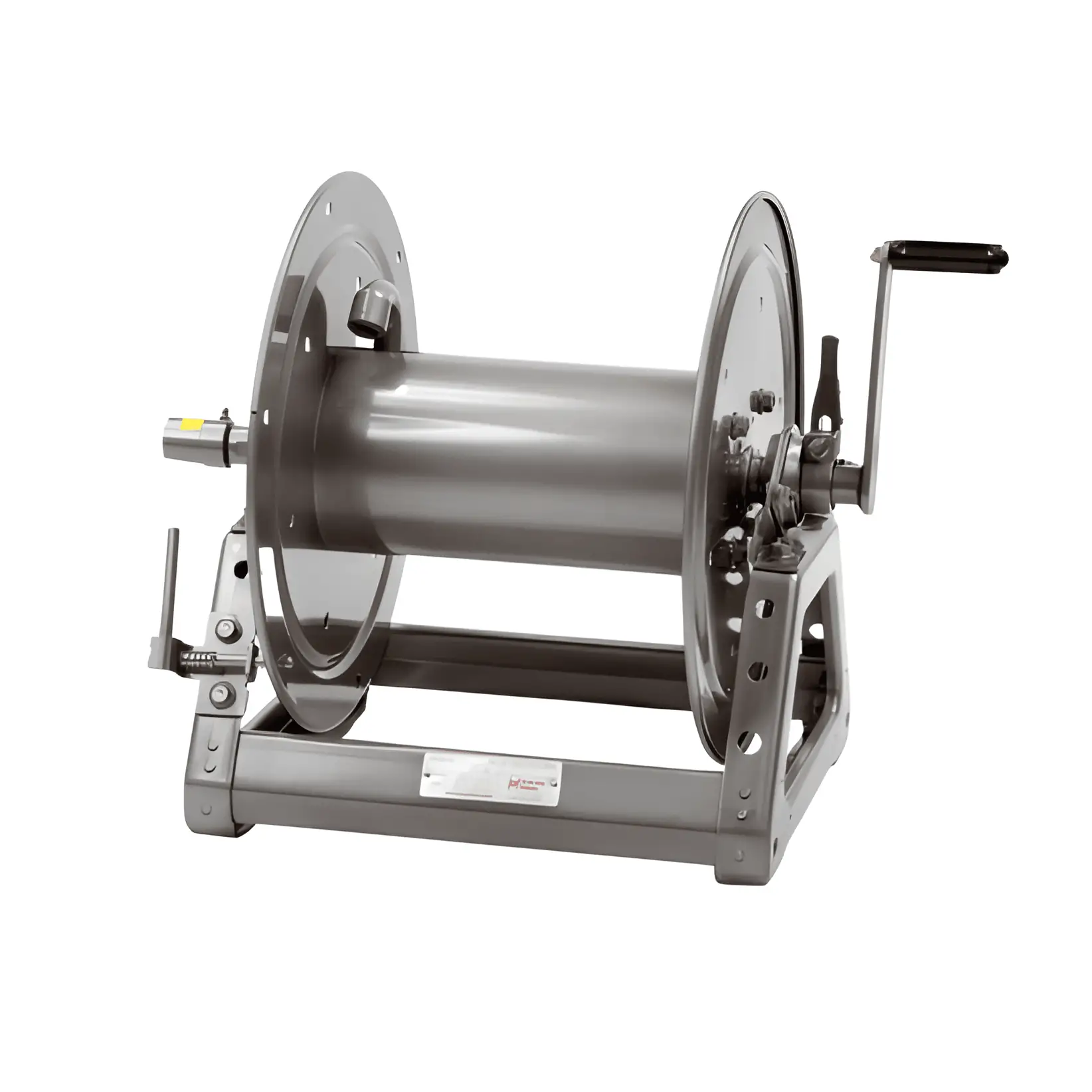

SERIES 1500 Manual or Power Rewind Reels

Price: $523.08$1,553.85 USD

To handle single 3/8″ through 5/8″ I.D. hose Lawn Care / Pest Control / Pressure Washing / Agriculture / Steam Cleaning / High Pressure / Water / Air
  • Lightweight, compact reels designed for long lengths of hose in manual and power rewind.
  • Manual rewind reels include: cam-lock drag brake, spring actuated pin lock and direct crank rewind.
  • Power rewind reels include: chain and sprocket drive powered by electric, hydraulic or air motor.
  • Standard inlet: 90° ball bearing swivel joint, 1/2″ female NPT threads.
  • Standard outlet: 1/2″ female NPT threads.
  • Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify.
  • Standard fluid temperatures from -32° F to +400 °F (0° C to +204° C). Optional temperature ratings available – consult factory.
  • Consult factory for other pressures and temperatures.
  • Optional rollers: specify roller position when ordering.
  • Heavy-Duty Upgrade Options: 3/16” thick discs, 8” diameter steel 14 gage drum, and optional pressures of 5000 or 10,000 psi, must specify when ordering.
  • Get quote for heavy duty hose reel.
Click the link to download a catalog.

Additional information

Reel Type

Reel Model

Reel Name

115V AC elec. Rewind, prefix "E", spec 115V, 1514-17-18 (crank rewind), 1520-17-18 (crank rewind), 1526-17-18 (crank rewind), 1530-17-18 (crank rewind), 1536-17-18 (crank rewind), Air rewind, prefix "A", E1514-17-18 (12V DC electric rewind), E1520-17-18 (12V DC electric rewind), E1526-17-18 (12V DC electric rewind), E1530-17-18 (12V DC electric rewind), E1536-17-18 (12V DC electric rewind), Hydraulic rewind. Prefix "HD"
