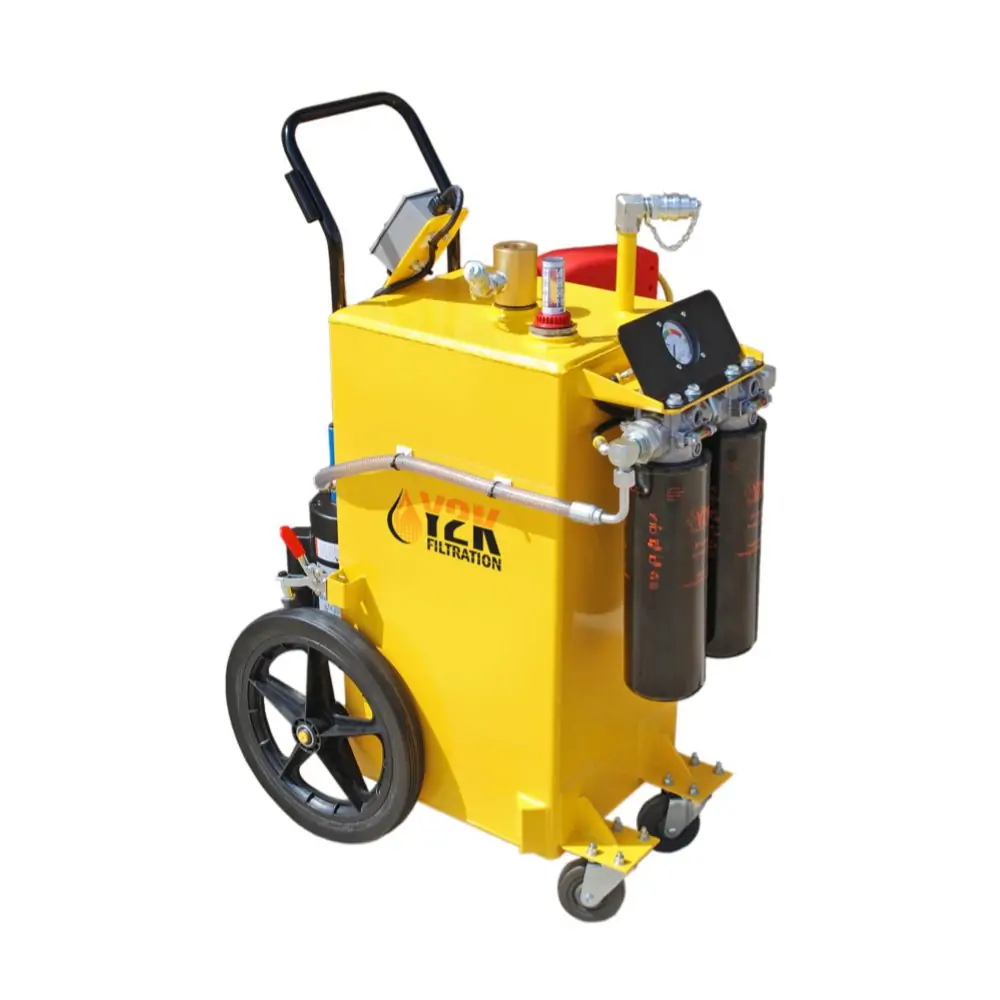

D SERIES T-3 TOTE

$14,121.00Call For Pricing

Typical Applications

  • Filtering contaminated systems
  • Flushing new or repaired systems
  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs or containers
  • Dispensing new oil

Description

Overview

The T-3 Tote is the most versatile tote we make. With its 30 gallon tank, this tote makes filtering, transferring, and topping off reservoirs a breeze. It can fill itself, be used as an off-line filter for cleaning different reservoirs, and to pump oil into various containers. This tote has all the power needed for filtering oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 150ºF. All Y2K products are 100% customizable upon request.

For filtering mineral and synthetic based oils (hydraulic oils, gear oils and turbine oils) with a maximum operating viscosity range of ISO VG 680 (3000ssu/648cSt) at 100°F within ambient temperature ranges of -15°F to 150°F.

Standard Features

Frame: Carbon steel, 30 gallon tank with 4 wheels

Paint: Multiple color options available

Motor: 1HP, 115vac, 60Hz or Pneumatic

Filter Heads: Medium pressure, cast aluminum heads

Pump: Heavy duty, cast steel gear pump. Available in 1, 2, 5 and 10 GPM

Connections: Various quick connect options available

Hoses: 7ft. Clear PVC, steel reinforced hose or hydraulic hose

Power Switch: Sealed on/off power switch

Cord Reel: 40ft. retractable electric cord reel

Breather: Desiccant Breather

Air Dryer: Dries Incoming plant air to -40 degrees or lower dew point

Filter Indicators: Slide bar indicators trigger at 50psid when elements need to be changed

Pump Relief: Opens at 150psi

Weight: Approx. 125lbs (will vary depending on options)

Dimensions:Approx. 30”L x 19”W x 35”H

Replacement Elements

Part NumberBETA RatingDesired Cleanliness Level (ISO Code)
P1066 ß4(c)=2000 14/12/9 – 13/11/8
P1065 ß7(c)=2000 18/16/13 – 15/13/10
P1063 ß10(c)=1000 19/17/14 – 18/16/13
P1064 ß25(c)=2000 20/18/15 – 19/17/14
P1048WR Water Removal

All D Series elements measure 5” x 14”.
