Double acting air operated medium pressure high volume pumps for dispensing lubricants in medium size installations. Pumps include height 2″ NPTM adjustable bung adaptor for drum and tank bung mounting. Built in port for optional (PN 609 007) pressure relief valve.

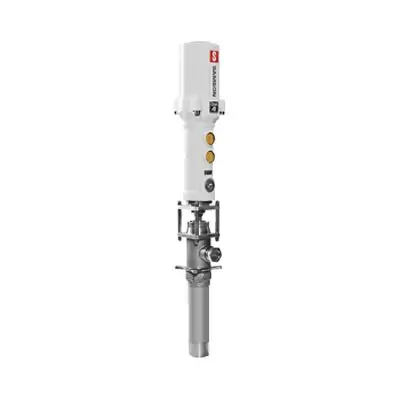

333 120 PumpMaster 4- 3:1 Stub Pump, Stainless Steel
Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance, Railroad
| Pump Pressure Ratio | 1:1 |
| Maximum Free Flow Rate | 10.6 gpm (40 l/min) |
| Continuous Duty Flow Rate | 6.6 gpm (25 l/min) |
| Air Pressure Operating Range | 20-145 psi (1.5-10 bar) |
| Air Motor Effective Diameter | 2 1/2″ (60 mm) |
| Air Motor Stroke | 3″ (75 mm) |
| Air Inlet | 3/8″ NPTF |
| Fluid Outlet | 3/4″ NPTF |
| Fluid Inlet | 1″ NPTF |
| Wetted Materials | PTFE, Viton, Stainless Steel |
| Application | Stub Pump with Height Adjustable Bung Adaptor |
