| Pump Pressure Ratio | 6:1 |
| Continuous Duty Flow Rate | 6.6 gpm (25 l/min) |
| Maximum Free Flow Rate | 25 gpm (95 l/min) |
| Air Pressure Operating Range | 20–170 psi (1.5–12 bar) |
| Maximum Outlet Pressure | 1,020 psi (72 bar) |
| Air Motor Effective Diameter | 4.5″ (115 mm) |
| Air Motor Stroke | 4″ (100 mm) |
| Air Consumption | 29 scfm (830 NL/min) |
| Air Inlet | 1/2″ NPTF |
| Fluid Inlet | 1½” NPTF |
| Fluid Outlet | 3/4″ NPTF |
| Wetted Materials | Cast Iron, Steel, NBR, Polyurethane, Hard Chromed Steel |
| Noise Level | 80 dB |
| Application | Stub pump |
| Simultaneous Dispense Points | 3–4 |
| Max. Line Length | 525′ (160 m) |
| Pump Description | Heavy Duty High Flow |

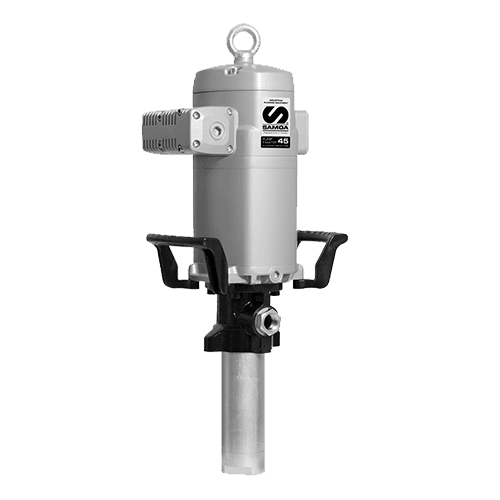

PumpMaster 45 6:1
Double acting air operated medium pressure pump for large system with simultaneous operation outlets that require a high delivery pump. Built in port for optional (PN 609 007) pressure relief valve. Flange Mounted Pump
Part No:
536 631 PumpMaster 45- 6:1 Stub Pump – flange mounted
Fluids Handled:
Synthetic and mineral-based oil
Transmission fluid
Hydraulic oil
Gear lube
Markets Served:
Railroad, Marine, In-Plant, Large Fleets, Large auto and truck dealers, Construction equipment maintenance, Mining equipment maintenance, Mass Transit Maintenance
