| Pump Pressure Ratio | 12:1 |
| Continuous Duty Flow Rate | 5.3 gpm (20 l/min) |
| Maximum Free Flow Rate | 17 gpm (65 l/min) |
| Air Pressure Operating Range | 20–170 psi (1.5–12 bar) |
| Maximum Outlet Pressure | 2,040 psi (144 bar) |
| Air Motor Effective Diameter | 6″ (150 mm) |
| Air Motor Stroke | 4″ (100 mm) |
| Air Consumption | 41 scfm (1,150 NL/min) |
| Air Inlet | 1/2″ NPTF |
| Fluid Inlet | 1½” NPTF |
| Fluid Outlet | 3/4″ NPTF |
| Wetted Materials | Cast Iron, Steel, NBR, Polyurethane, Hard Chromed Steel |
| Noise Level | 80 dB |
| Application | Stub pump with bung |
| Simultaneous Dispense Points | 3–4 |
| Max. Line Length | 800′ (250 m) |
| Pump Description | Heavy Duty High Performance |

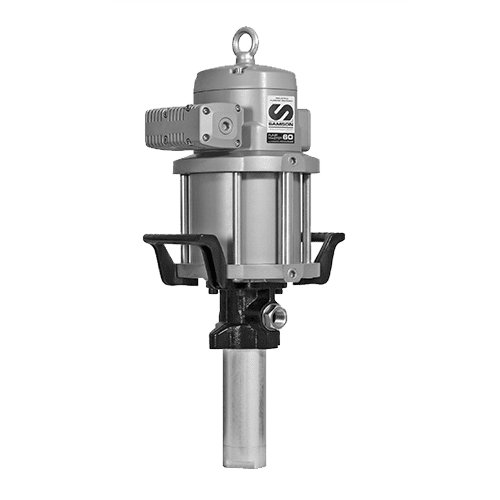

PumpMaster 60 12:1
Double acting air operated medium pressure and high delivery pump for very large installations with simultaneous operation outlets or when low pressure or low temperatures would limit pump performance. Built in port for optional (PN 609 008) pressure relief valve. Flange-Mounted Pump. Bung bushing (PN.: 360 006) optional for pump 536 011
Part No:
537 131 PumpMaster 60- 12:1 Stub Pump – flange mounted
Fluids Handled:
Synthetic and mineral-based oil
Transmission fluid
Hydraulic oil
Gear lube
Markets Served:
Marine, In-Plant, Large Fleets, Construction equipment maintenance, Mining equipment maintenance, Very Large auto and truck dealers, Mass Transit Maintenance, Railroad
