| Pump Pressure Ratio | 12:1 |
| Continuous Duty Flow Rate | 33 lb/min (15 kg/min) |
| Maximum Free Flow Rate | 88 lb/min (40 kg/min) |
| Air Pressure Operating Range | 20–100 psi (1.5–7 bar) |
| Maximum Outlet Pressure | 1,200 psi (84 bar) |
| Air Motor Effective Diameter | 6″ (150 mm) |
| Air Motor Stroke | 4″ (100 mm) |
| Air Consumption | 39 scfm (1,100 NL/min) |
| Air Inlet | 1/2″ NPTF |
| Fluid Outlet | 1″ NPTF |
| Wetted Materials | Cast Iron, Steel, Hard Chromed Steel, UHMWPE, NBR, PTFE, Polyurethane |
| Noise Level | 80 dB |
| Application | Bulk tote |
| Simultaneous Dispense Points | 1 |
| Max. Line Length | 175′ (50 m) |
| Pump Description | Heavy Duty Volume Transfer |

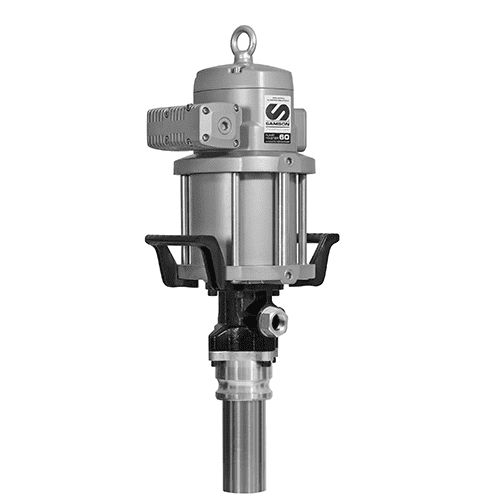

PumpMaster 60 12:1
Moderate pressure, very high volume double acting grease pump for transfer of grease up to NLGI-2. Pumps are available for horizontal mounting on greased totes and grease bags.
Part No.:
532 131 – Bulk Tote, includes 3″ camlock
Fluids Handled:
Grease up to NLGI-2
Markets Served:
In-Plant, Mining equipment maintenance, Mass Transit Maintenance, Railroad
