Overview

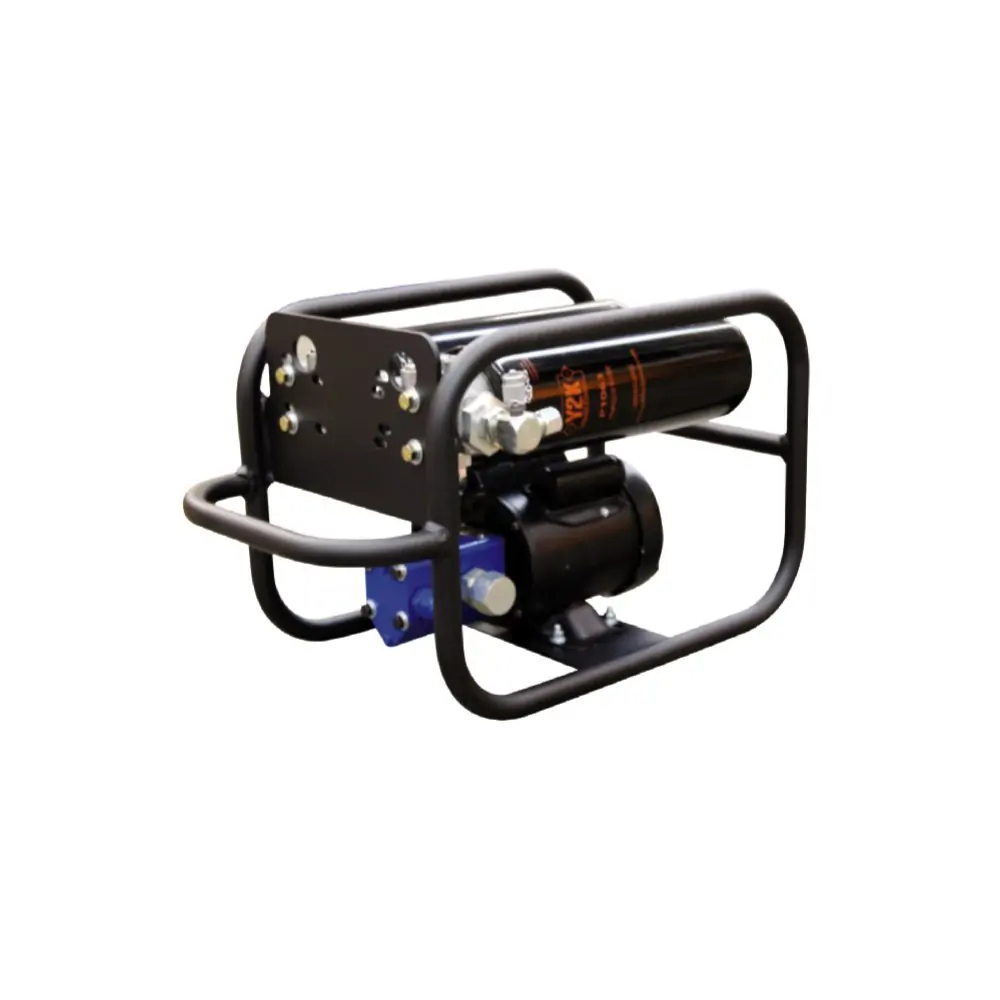

Compact and portable, the DTD Drum Topper is designed to fit perfectly on top of a 55-gallon drum. When portability and convenience is of the utmost importance, the Drum Topper has your back. With the ability to be used horizontally or vertically, our drum topper is the most versatile in the industry. It has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 150ºF. All Y2K products are 100% customizable upon request. For filtering mineral and synthetic based oils (hydraulic oils, gear oils and turbine oils) with a maximum operating viscosity range of ISO VG 690 (3000ssu/648cSt) at 100ºF within ambient temperature ranges of -15ºF to 150ºF.

Standard Features

Frame: Heavy duty aluminum frame Paint: Multiple color options available Motor: 1/4HP, 1/2HP & 1HP, 115vac, 60Hz or Pneumatic Filter Heads: Medium pressure, cast aluminum heads Pump: Heavy duty, gear pump. Available in 1, 2 5 and 10 GPM Connections: Various quick connect options available Hoses: 7ft. Clear PVC, steel reinforced hose or hydraulic hose Power Switch: On/Off Toggle Switch Cord Reel: 4ft. cord Filter Indicators: Slide bar indicators trigger at 50psid when elements need to be changed Pump Relief: Opens at 150psi Weight: Approx. 45 lbs (will vary depending on options)

Replacement Elements

Part Number	BETA Rating	Desired Cleanliness Level (ISO Code)
P1066	ß4(c)=2000	14/12/9 – 13/11/8
P1065	ß7(c)=2000	18/16/13 – 15/13/10
P1063	ß10(c)=1000	19/17/14 – 18/16/13
P1064	ß25(c)=2000	20/18/15 – 19/17/14
P1048WR	Water Removal

All D Series elements measure 5” x 14”.
