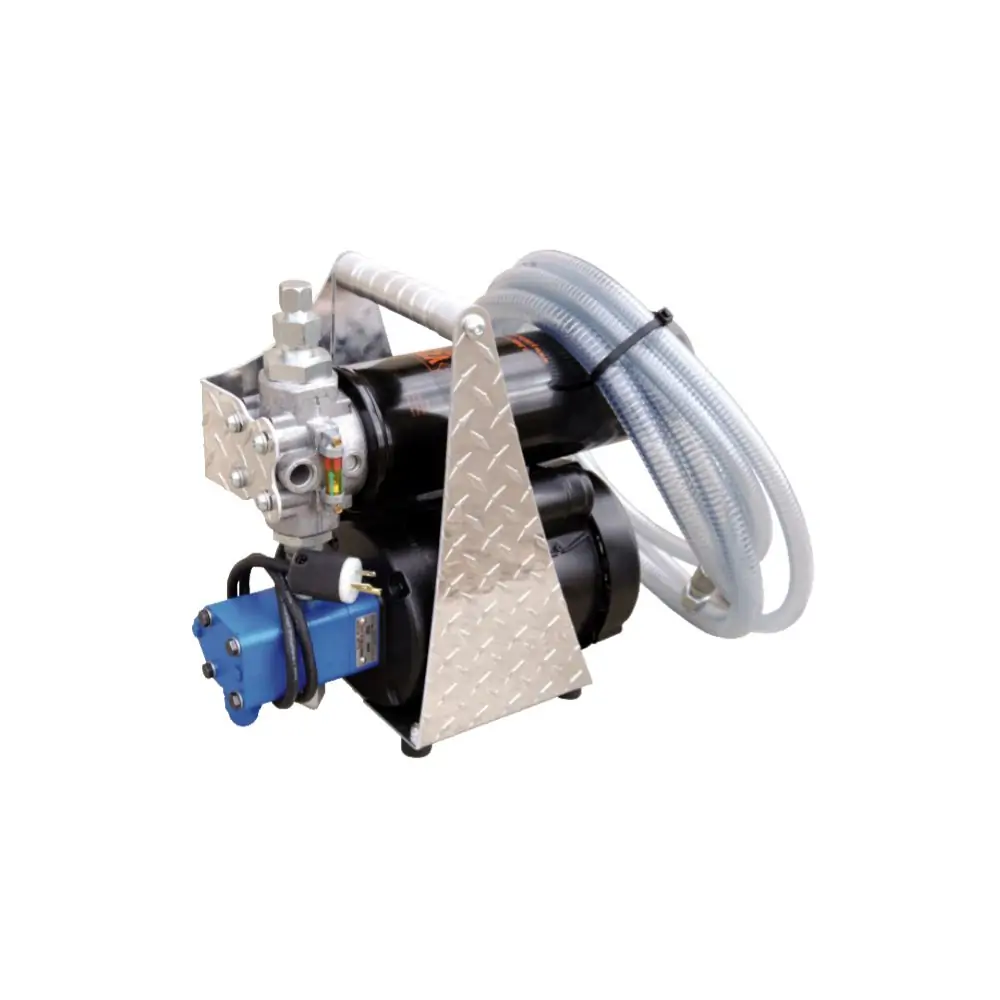

D Series Filterpak

Call For Pricing

Typical Applications

  • Filtering contaminated systems
  • Flushing new or repaired systems
  • Pre-filtering new oil
  • Transferring oils
  • Topping off reservoirs
  • Dispensing new oil

Overview

Perfect for situations with minimal storage space, the FP-D FilterPak combines style and convenience in a compact design that allows the operator to carry it just about anywhere. This powerhouse has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 150ºF. All Y2K products are 100% customizable upon request. For filtering mineral and synthetic based oils (hydraulic oils, gear oils and turbine oils). This powerhouse has the ability to filter oil viscosities up to 600cSt (ISO VG 680) at 100ºF within ambient temperature ranges of -15ºF to 150ºF

Standard Features

Frame: Heavy duty, diamond plated aluminum frame Motor: 1/2 HP or 1HP, 115vac, 60Hz or Pneumatic Filter Heads: Medium pressure, cast aluminum heads Pump: Heavy duty, cast steel gear pump. Available in 1, 2, 5 and 10 GPM Connections: Various quick connect options available Hoses: 7ft. Clear PVC, steel reinforced hose or hydraulic hose Power Switch: On/off toggle switch Cord Reel: 4ft. cord Filter Indicators: Slide bar indicators trigger at 50psid when elements need to be changed Pump Relief: Opens at 150psi Weight: Approx. 50lbs (will vary depending on options) Dimensions: Approx. 8”L x 16”W x 16”H

Replacement Elements

Part Number BETA Rating Desired Cleanliness Level (ISO Code)
P1066 ß4(c)=2000 14/12/9 – 13/11/8
P1065 ß7(c)=2000 18/16/13 – 15/13/10
P1063 ß10(c)=1000 19/17/14 – 18/16/13
P1064 ß25(c)=2000 20/18/15 – 19/17/14
P1048WR Water Removal
All D Series elements measure 5” x 14”.
