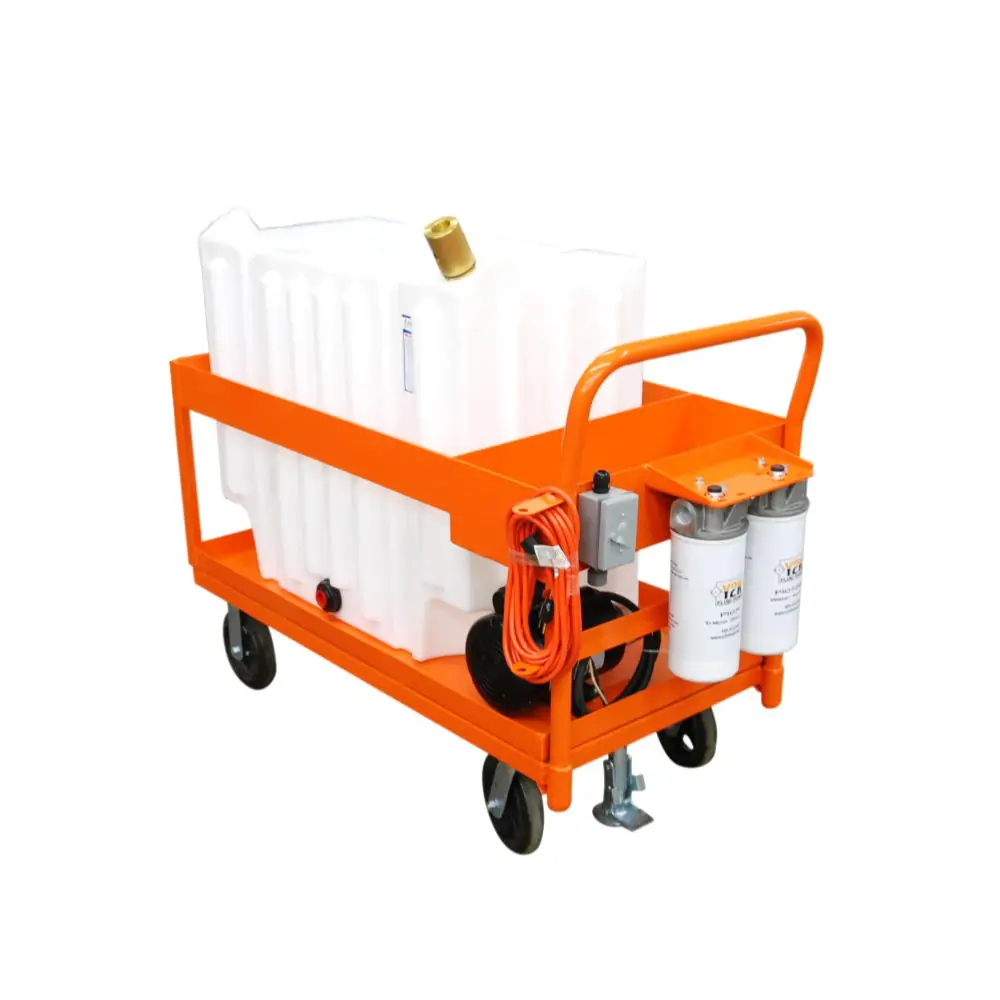

Description
Standard Features
Frame: Carbon steel platform frame with drip pan and utility tray
Paint: Multiple color options available
Tank(s) 32, 71 and 115 gallon poly tanks available
Motor: 1HP, 115vac, 60Hz or Pneumatic
Filter Heads: Aluminum heads
Pump: Aluminum gear pump. Available in 2, 5 and 10 GPM
Connections: Various quick connect options available
Hoses: 7ft. Clear PVC, steel reinforced hose or hydraulic hose
Power Switch: Sealed on/off power switch
Cord: 25ft. cord
Filter Indicators: Pop up indicator triggers at 50 psid when elements need to be changed.
Pump Relief: Opens at 150psi
Weight: Approx. 150 lbs (will vary depending on options)
Dimensions: Approx. 55”L x 24”W x 52”H
Replacement Elements
| Part Number | BETA Rating | Desired Cleanliness Level (ISO Code) |
|---|---|---|
| P1068 | ß3(c)=1000 | 14/12/9 – 13/11/8 |
| P1069 | ß10(c)=1000 | 18/16/13 – 17/15/12 |
| P1071 | ß25(c)=1000 | 21/19/16 – 20/18/15 |
| P1072WR | Water Removal |
All M Series elements measure 5” x 10”.
