304 SS Construction
Priced below competitors carbon steel units. TTI believes carbon steel should be eliminated in high humidity environments.
20% More Microglass Media
Equating to more dirt holding capacity.
20% More Moisture Holding
Capacity for the
Power Breathers gel compared to competitors and proven in head-to-head trials.
Fully Compatible
With DES-CASE rebuildable breathers.
The TTI Rebuildable
Power Breather offers the ability to remove both particulate and moisture in high-flow and extreme humidity environments.
While in service, the Power Breather eliminates moisture and particulate intrusion into the system. During shutdown, the
Power Breather silica gel attracts moisture by actively drying the system.
Rebuild Kit
Replacement Filter Cartridge
Pleated microglass filter cartridge captures airborne contaminants to 1 micron absolute.
Desiccant Bag Filter
Polypropylene bag has handles for easy removal and replacement.
Sight Glass Indicator
Silica gel changes color from blue to pink when the unit requires rebuilding.
Note: Rebuild kit also includes lid gasket, sight glass gasket and oil dispersing foam pad.

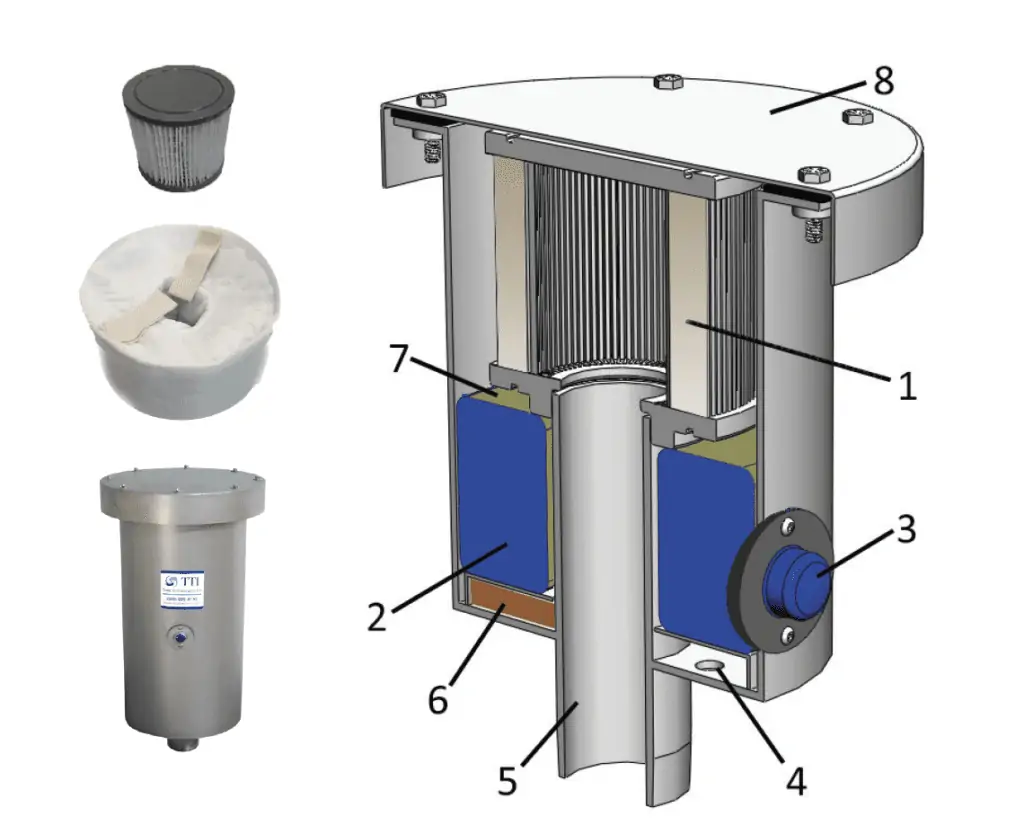

Rebuildable Breather Components
1-Pleated Filter Cartridge
Pleated microglass filter cartridge captures airborne contaminants to 1 micron absolute.
2-Desiccant
Silica gel strips moisture from incoming air.
3-Sight Glass Indicator
Silica gel changes color from blue to pink when the unit requires rebuilding.
4-Air Vents
Removable stickers keep breather inactive until installation.
5-Integrated Standpipe
Open-flow construction provides negligible resistance to air flow and allows oil mist to coalesce and drain back into the reservoir.
6-Foam Pad
Polymeric foam filter pad captures large particulate, attracts and absorbs oil, and disperses incoming air evenly across the filter cartridge and desiccant media.
7-Easy to Replace Desiccant Bag
Polypropylene bag has handles for easy removal.
8-Rugged Housing
Robust 304 SS construction eliminates chance of corrosion in high humidity environments.
Dimensions
Model |
Height
inches/cm |
Width
inches/cm |
Approx. Dry Weight
lbs/kg |
Amount of Desiccant
lbs/kg |
Max Absorption Capacity
gal/L |
Max. Air Flow Rate
cfm |
Oper. Temp. |
Connect Size |
TT-RS-3 |
11.5/29.2 |
10.1/25.7 |
16/7.26 |
3/1.36 |
0.14/0.54 |
85 @ 0.5psid |
-20-220°F/
-29-104°C |
2” |
TT-RS-5 |
13.75/34.9 |
10.1/25.7 |
20/9.07 |
5/2.27 |
0.24/0.9 |
85 @ 0.5psid |
-20-220°F/
-29-104°C |
2” |
TT-RS-9 |
18.25/45.4 |
10.1/25.7 |
27/12.25 |
9/4.08 |
0.43/1.62 |
80 @ 0.5psid |
-20-220°F/
-29-104°C |
2” |
TT-RS-15 |
19.25/48.9 |
15.5/39.4 |
49/22.23 |
15/6.80 |
0.71/2.7 |
205 @ 0.5psid |
-20-220°F/
-29-104°C |
3” |
TT-RS-25 |
22.5/57.1 |
15.5/39.4 |
64/29.03 |
25/11.34 |
1.19/4.5 |
140 @ 0.5psid |
-20-220°F/
-29-104°C |
3” |
TT-RS-50 |
31.25/79.4 |
15.5/39.4 |
100/45.36 |
50/22.68 |
2.38/9 |
115 @ 0.5psid |
-20-220°F/
-29-104°C |
3” |
TT-RS-75 |
39.75/101 |
15.5/39.4 |
144/65.32 |
75/34.02 |
3.57/13.5 |
80 @ 0.5psid |
-20-220°F/
-29-104°C |
3” |
Rebuild Parts and Accessories
Model |
Description |
TT-RS* RK |
Rebuildable Stainless Steel Breather Kits |
TT-RS* F1 |
Rebuildable Stainless Steel Breather Microglass Filter Cartridge |
TT-RS* D1 |
Rebuildable Stainless Steel Desiccant Bag |
TT-RS* SG1 |
Rebuildable Stainless Steel Breather Sight Glass |
TT-RS* P1 |
Rebuildable Stainless Steel Breather Foam Pad Insert |
TT-RS* G1 |
Rebuildable Stainless Steel Breather Gasket Seals |
NOTE: For part codes containing an (*), substitute the appropriate RS model number.
(Example: the part code for a rebuildable stainless steel breather kit for the TT-RS-75 would be TT-RS-75-RK.)
TTI recommends use of a pressure relief valve on any tank or storage system.
Materials
Housing: 304 Stainless Steel
Moisture Absorbing Media: Silica Gel
Filter Media: Microglass, Polyurethane
Gasket/Seal: Buna-N
