Titan Power Breather

Call For Pricing

High flow, extended life Power Breathers are ideal for tank farms and large applications. Options include: standard check-valve technology, SmartFlow™ technology, and no check-valve option for extreme flow applications.

Applications

Large Gearboxes | Remote Applications | Storage Tanks | Wind Turbines

Benefits

Aviation | Manufacturing | Mining | Petrochemical | Pulp Paper | Storage | Wind Energy

Standard Titan Check-Valve Model

The Standard Check-Value model offers protection from ambient humidity in intermittent operations.

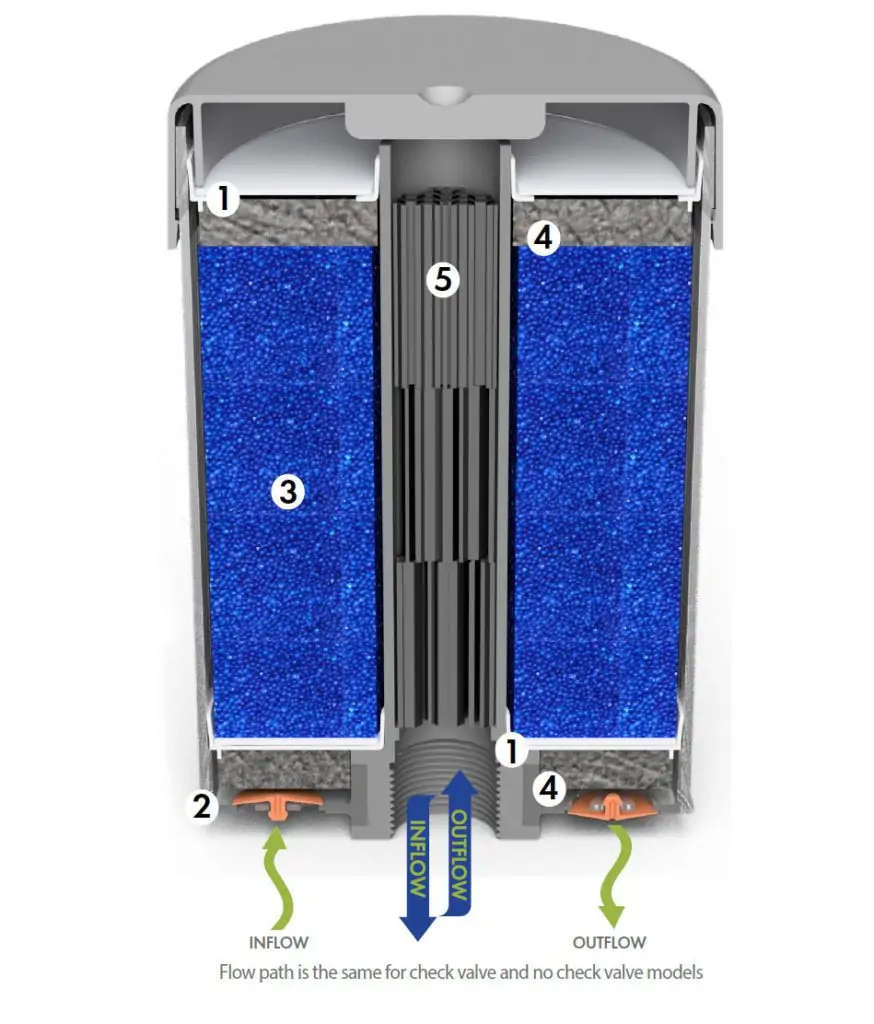

  • DUAL–ZONE MICROGLASS FILTRATION MEDIA Delivers superior filtration efficiency, dirt holding capacity and low pressure drop.
  • INFLOW/OUTFLOW CHECK VALVES Protects the Power Gel media from humid ambient conditions, extending breather life.
  • POWER GEL MEDIA Industry leading moisture capacity as proven in the lab and field.
  • FOAM FILTER Urethane foam traps particulate and scavenges residual oil mist, preventing contamination of the Power Gel media.
  • COALESCER Collects oil mist and returns it to the fluid tank, protecting the Power Gel media from oil contamination. It has up to 4X the functional surface area of competing brands.

Titan No Check-Valve Model

The No Check-Value model offers extremely high flows at reduced pressure drops for large applications.

Titan SmartFlow™ Model

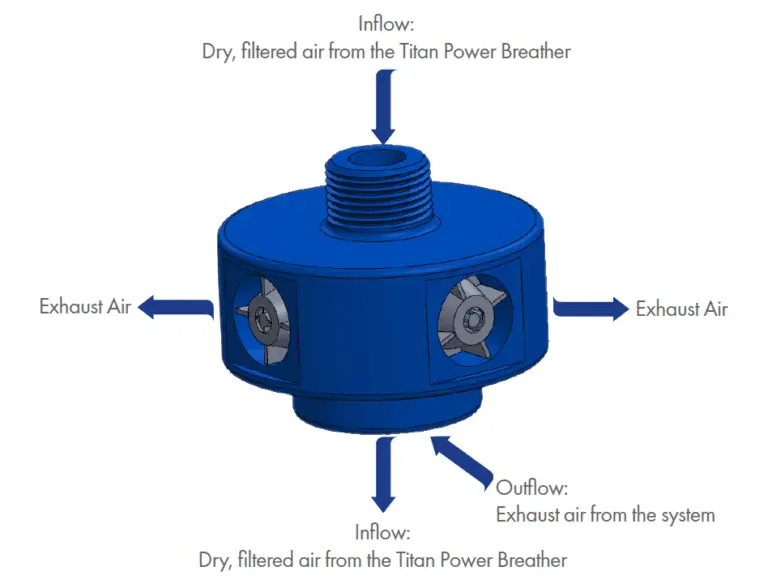

The SmartFlow™ adapter allows for exhaust of the outflow air prior to entering the breather. This protects the breather from oil mist and system humidity, resulting in longer breather life *Titan Power Breather SF Models MUST be used together with the SmartFlow™ adapter model: Titan-Adapter-SF to allow pressure to vent from the system.

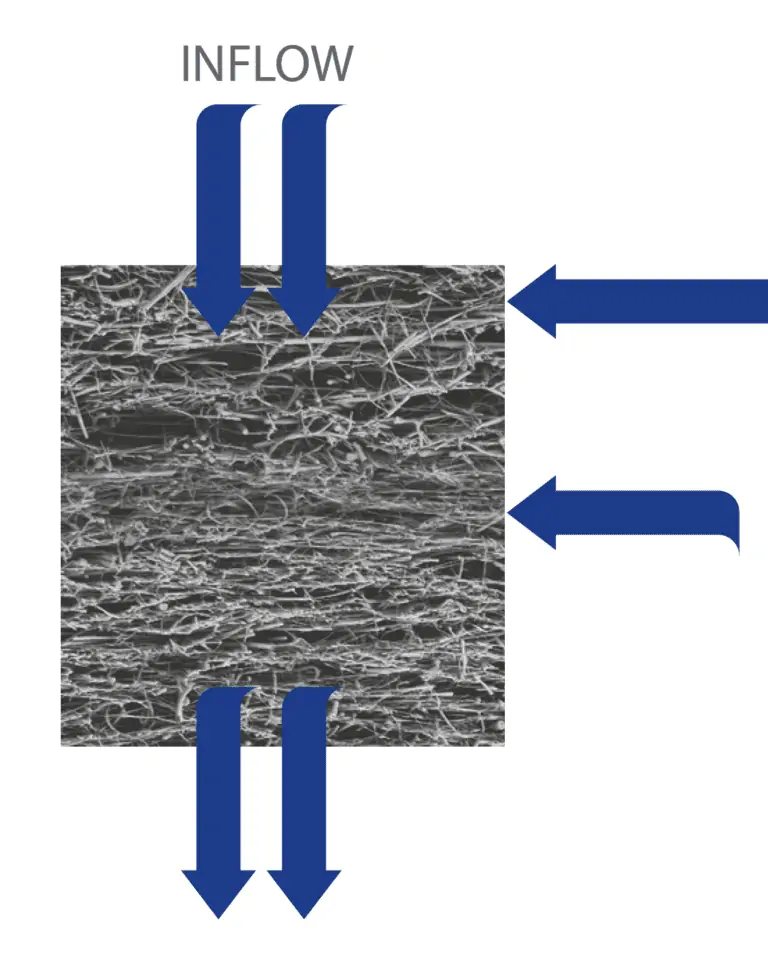

Superior Filtration

Delivers superior filtration efficiency, dirt holding capacity and low pressure drop.

1 Micron Retentive Layer

Fine denier fibers provide high-efficiency polishing to remove the finest particulate.

3-5 Micron Particulate Capture Layer

Pre-filtration layer provides high-capacity capture of bulk airborne particulate.

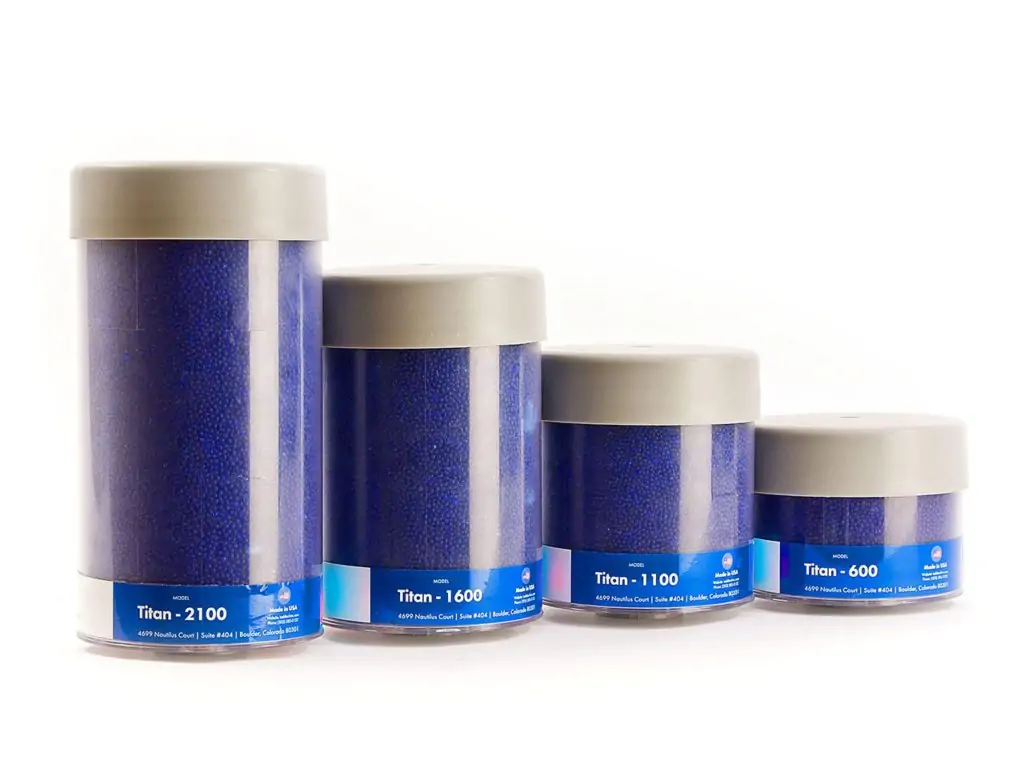

Dimensions

Models Europe Connection Height Width Max Airflow at 1psid Max Moisture Retention
Titan-600 Titan-600E 1” Sure-Fit (FNPT, FBSPP, FNPSM) 4.4” 5.7” 27 cfm / 765 lpm 272 ml / 9.2 fl oz
Titan-1100 Titan-1100E 1” Sure-Fit (FNPT, FBSPP, FNPSM) 6.5” 5.7” 26 cfm / 736 lpm 500 ml / 16.9 fl oz
Titan-1600 Titan-1600E 1” Sure-Fit (FNPT, FBSPP, FNPSM) 8.6” 5.7” 25 cfm / 708 lpm 728 ml / 24.6 fl oz
Titan-2100 Titan-2100E 1” Sure-Fit (FNPT, FBSPP, FNPSM) 10.7” 5.7” 24 cfm / 680 lpm 958 ml / 32.4 fl oz

Smart Flow

Models Europe Connection Height Width Max Airflow at 1psid Max Moisture Retention
Titan-600-SF Titan-600E-SF 1” Sure-Fit (FNPT, FBSPP, FNPSM) 4.4” 5.7” 30 cfm / 845 lpm 272 ml / 9.2 fl oz
Titan-1100-SF Titan-1100E-SF 1” Sure-Fit (FNPT, FBSPP, FNPSM) 6.5” 5.7” 29 cfm / 821 lpm 500 ml / 16.9 fl oz
Titan-1600-SF Titan-1600E-SF 1” Sure-Fit (FNPT, FBSPP, FNPSM) 8.6” 5.7” 28 cfm / 793 lpm 728 ml / 24.6 fl oz
Titan-2100-SF Titan-2100E-SF 1” Sure-Fit (FNPT, FBSPP, FNPSM) 10.7” 5.7” 26 cfm / 736 lpm 958 ml / 32.4 fl oz
*Titan Power Breather SF Models, MUST be used together with a SmartFlow™ adapter to allow pressure to vent from the system. **Titan-Adapter-SF adds 2.2 inches of height to SF model Titan Power Breathers.

No Check Valve

Models Europe Connection Height Width Max Airflow at 1psid Max Moisture Retention
Titan-600-NC Titan-600E-NC 1” Sure-Fit (FNPT, FBSPP, FNPSM) 4.4” 5.7” 39 cfm / 1104 lpm 272 ml / 9.2 fl oz
Titan-1100-NC Titan-1100E-NC 1” Sure-Fit (FNPT, FBSPP, FNPSM) 6.5” 5.7” 36 cfm / 1019 lpm 500 ml / 16.9 fl oz
Titan-1600-NC Titan-1600E-NC 1” Sure-Fit (FNPT, FBSPP, FNPSM) 8.6” 5.7” 35 cfm / 991 lpm 728 ml / 24.6 fl oz
Titan-2100-NC Titan-2100E-NC 1” Sure-Fit (FNPT, FBSPP, FNPSM) 10.7” 5.7” 32 cfm / 906 lpm 958 ml / 32.4 fl oz
