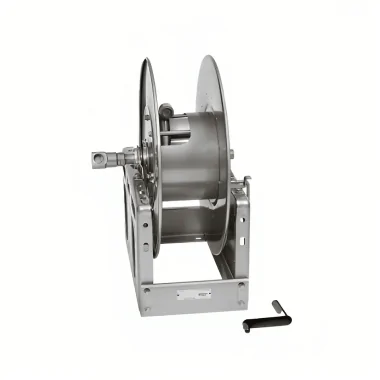

SERIES 1½” Manual or Power Reels

Price: $1,876.92$3,569.23 USD

Clear
To handle single 1-1/4″ through 1-1/2″ I.D. hose

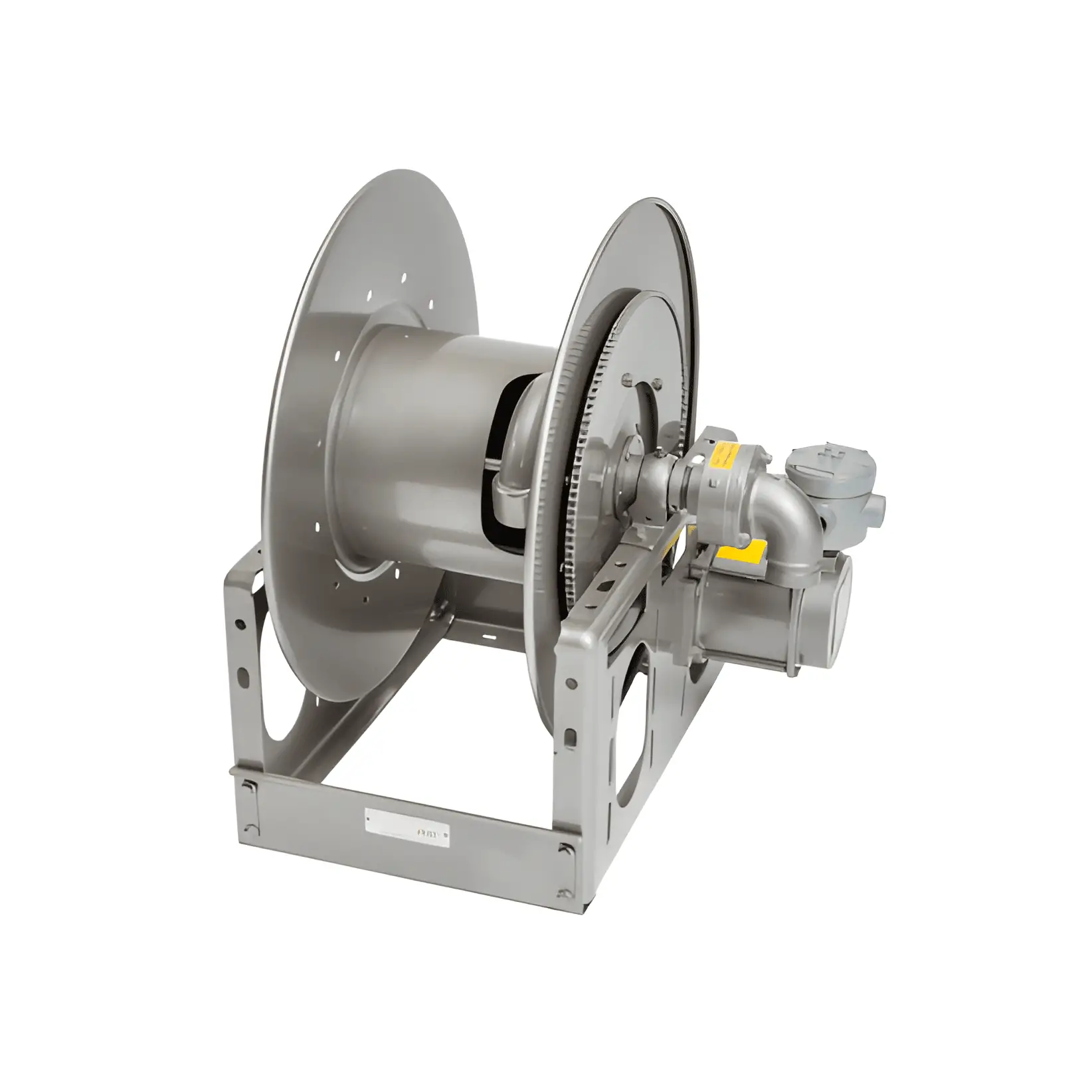

  • Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor.
  • Optional auxiliary crank rewind for power rewind reels.
  • Choose EP or EPJ option.
  • Comet brake standard on power rewind without auxiliary crank.
  • Standard inlet: 90° ball bearing swivel joint with 1-1/2″ female NPT threads and 2″ Victaulic® groove.
  • Standard outlet: 1-1/2″ female NPT threads. Other sizes and/or threads can be furnished and must be specified.
  • Standard: inlet, outlet riser, and hub assembly are steel. Options: also available in aluminum or stainless steel.
  • Rollers and roller mounting brackets are accessory items. Specify roller position.
  • Chain guard is available upon request; must be specified.
  • Standard pressures to 600 psi (41 bar).
  • Standard fluid temperatures from -40° F to +400 °F (-40° C to +204° C).
  • Consult factory for other pressures and temperatures.
Click the link to download a catalog.

Additional information

Reel Type

Reel Model

Reel Name

115V AC Electric Rewind w/ junction box (no switch)-Prefix model "Ep"(must spec 115V), 115V AC Electric Rewind w/ junction box & EP switch-Prefix model "EPJ"(must specify 115V), 12V DC Electric rewind w/junction box & EP switch, prefix model "EPJ", 12V DC Electric rewind, Prefix Model "EP", Air Rewind, Prefix Model "A", Bevel Gear crank Rewind, Hydraulic Rewind, Prefix Model "HD"
