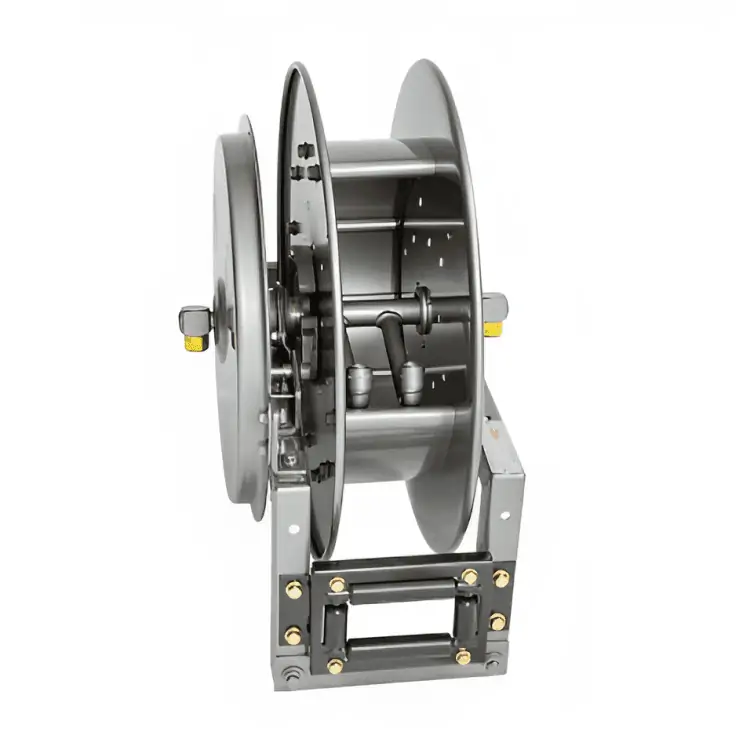

SERIES N500 Spring Rewind Reels

Price: $676.92 – $1,693.03 USD

Reel Type
Reel Name	Clear

Expected Delivery Date: 2-3 weeks

To handle 1/4″ or 3/8″ I.D. high-pressure hose Chassis Grease / Hydraulics / Air / Water

Compact frame and narrow base.
Non-sparking ratchet assembly.
Declutching arbor to prevent damage from reverse winding.
Standard inlet: 90° swivel joint, 1/4″ female NPT threads. 3/8″ female NPT threads are optional and must be specified.
Standard outlet: 1/4″ female NPT threads. 3/8″ female NPT threads are optional and must be specified.
Other threads can be furnished and must be specified.
Standard 1/4″ pressure 10,000 psi (690 bar); Standard 3/8″ pressure: 3000 psi (207 bar); Optional 3/8″ pressure: 8000 psi (552 bar) – must specify.
Standard fluid temperatures from -40° F to +250 °F (-40° C to +121° C). Optional temperature ratings available – consult factory.
4-way roller assembly. SR and VR roller positions: swivel joint is standard on the right. TR roller positions: swivel joint is standard on the left. Other configurations available, must specify, click for more information.
Constant tension is available – consult factory.

Reel Type	Reel Model, REELS WITH 3/8" INTERNALS (3.000 PSI), REELS WITH 3/8" INTERNALS (8.000 PSI)
Reel Name	N515-14-16-8L, N515-16-17-10.5C, N515-19-20-10.5J, N515-19-20-10.5J (1/4"X50'X5800 PSI HOSE), N515-19-20-15.5J (3/8"X50'X5000 PSI HOSE), N515-23-24-15.5J, N515-26-26-15.5B, N516-25-26-15.5B
