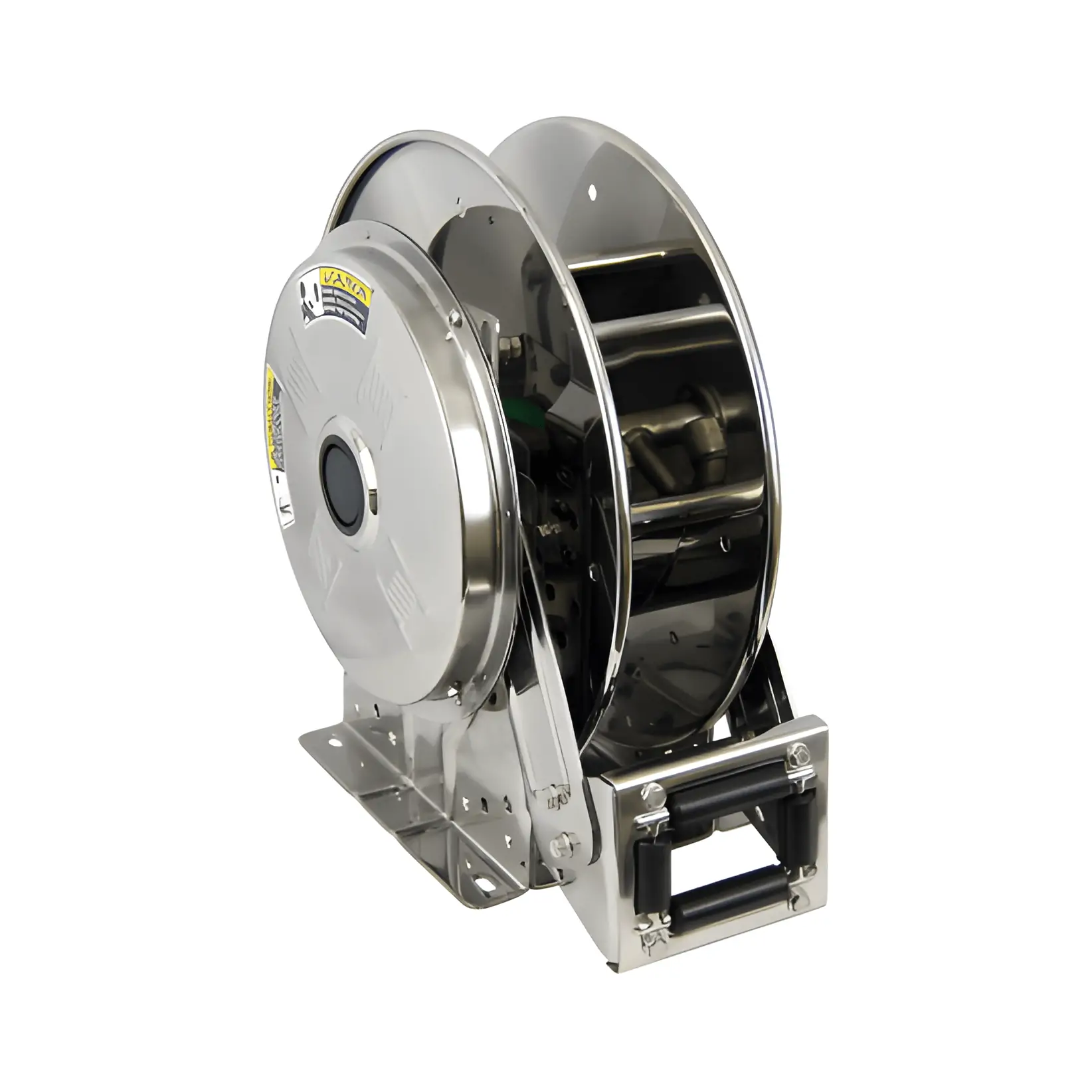

SERIES SSN700 Stainless Steel Spring Rewind Reels

Price: $2,015.38$2,907.69 USD

To handle 1/4″ through 1/2″ I.D. hose Lubrication / Potable Water / Chemical Transfer / Washdown / Corrosive Environments
  • Standard SSN Series has a narrow frame and compact mounting base.
  • Non-sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet: 90° stainless steel ball bearing swivel joint, 1/2″ female NPT threads.
  • Standard outlet: 1/2″ female NPT threads.
  • Standard pressures to 3000 psi (207 bar).
  • Standard fluid temperatures from -32° F to +400 °F (0° C to +204° C). Optional temperature ratings available – consult factory.
  • Consult factory for other pressures and temperatures.
  • 4-way roller assembly.
  • SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify, click for more information.
  • Constant tension is available consult factory.
  • 304 stainless steel hose reel construction.
  • Optional SST Mosmatic ½” balanced pressure swivel joint available, subtract 1.50″ from “F” dimension, specify when ordering.
Click the link to download a catalog.

Additional information

Reel Type

Reel Model

Reel Name

SSN716-16-17-10.5J, SSN716-19-20-10.5J, SSN716-23-24-15.5G, SSN716-23-24-15.5J, SSN716-25-16-15.5B, SSN718-25-16-15.5A, SSN718-25-16-15.5G
